SYSTEM BROCHURES

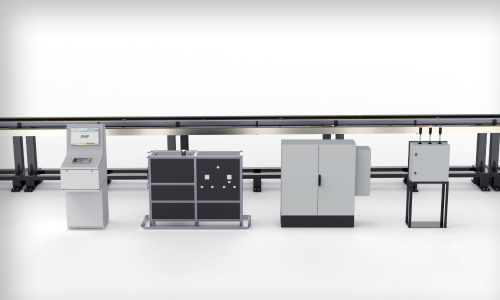

AUTOMATIC DP TEST MACHINE
Dye penetration test machine is plc based automated system designed to ensure high quality & reliability in weld overlay products. It is used to detect welding surface defects such as hairline cracks, surface porosity, and fatigue cracks.

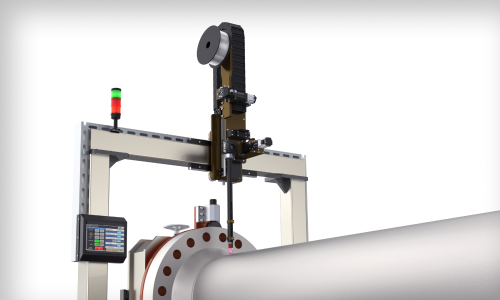

BUTT WELDING STATION
Butt welding stations are designed for productivity, quality and consistency.BWS is developed to increase operational margins through optimizing's production lead time and cutting down the weld wire wastage to marginal levels.

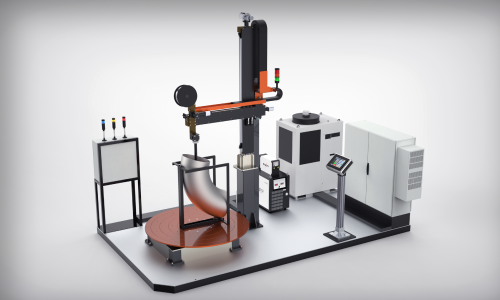

COMPACT CLADDING STATION
The ccs packs all the power and functionality of the larger vertical clad station into a design that perfectly fits multiple cladding applications despite it’s smaller footprint.

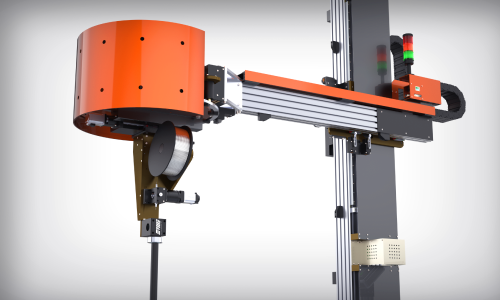

CONTINUOUS ROTATING TORCH STATION
The CRT system packs a fully operational control into a cost-effective design with a servo-controlled rotating torch head. Our CRTsystem is a flexible solution well adapted for non-rotating asymmetric workpiece.

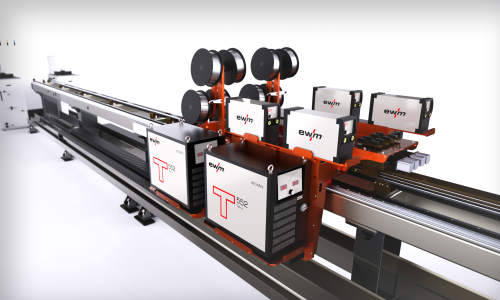

HORIZONTAL PIPE CLADDING STATION
The HPCS comprises of a hollow bore, height adjustable floating headstock and height adjustable floating idlers to clamp and support the pipe. Our system can accommodate pipes ranging from 6” upwards normally to a maximum of 48” diameter welding internally up to 12.5 meters in length.

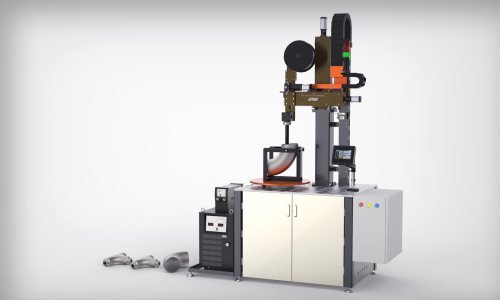

TABLE TOP CLADDING STATION
The ttcs is an ultra-compact, plug n play, cost-effective design with minimum foot print that fits cladding applications on components up to diameter of 16” and 0.5ton.

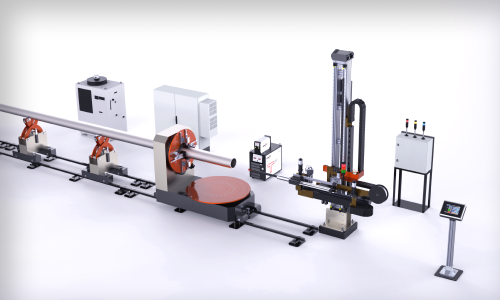

UNIVERSAL CLAD STATION
A perfect amalgamation of vertical & horizontal weld overlay stations with butt welding capabilities. The most versatile model from our range of Products that can clad almost all kinds of components.

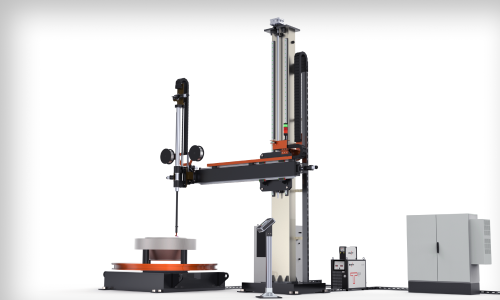

XL - VERTICAL CLADDING STATION
The system incorporates a column & boom manipulator with floor turntable. The column & boom are made out of light weight heavy duty aluminium extrusion. (option of a 2nd turntable or welding positioner to maximise productivity).
